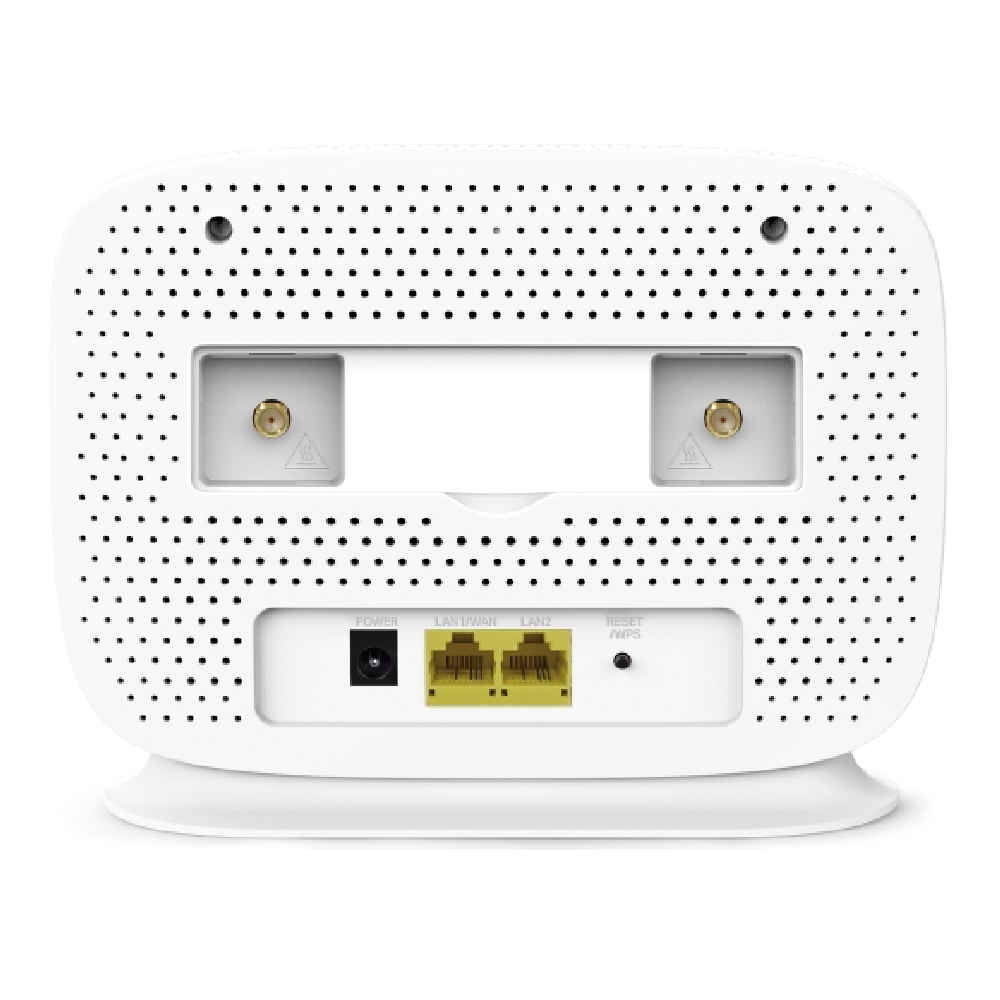

| Giao diện | 1 10/100Mbps LAN Port 1 10/100Mbps LAN/WAN Port 1 Nano SIM Card Slot |
| Nút | Reset/WPS Button |
| External Power Supply(EU) | 9V/0.85A |
| Kích thước | 174×130×60 mm |
| Ăng ten | 2× Internal 4G/3G Antennas 2× Internal Wi-Fi Antennas 2× External 4G/3G Antenna Ports |
| Chuẩn Wi-Fi | IEEE 802.11b/g/n |
| Băng tần | 2.4 GHz |
| Tốc độ tín hiệu | 300 Mbps |
| Reception Sensitivity | 11g 54M: -74dBm 11n HT20: -73dBm 11n HT40: -70dBm |
| Công suất truyền tải | ≤ 20 dBm (2.4 GHz) |
| Tính năng Wi-Fi | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| WAN Failover | Yes |
| Bảo mật Wi-Fi | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Dạng mạng | 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/750 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) 3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
| Bảo mật | IPv4 SPI Firewall, IP and MAC Address Binding |
| Dạng WAN | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Mạng khách | 2.4 GHz Guest Network |
| Administration | Upgrade Firmware, Factory Default, System Log, Diagnostic Tools |
| Dynamic DNS | TP-Link, DynDns, NO-IP |

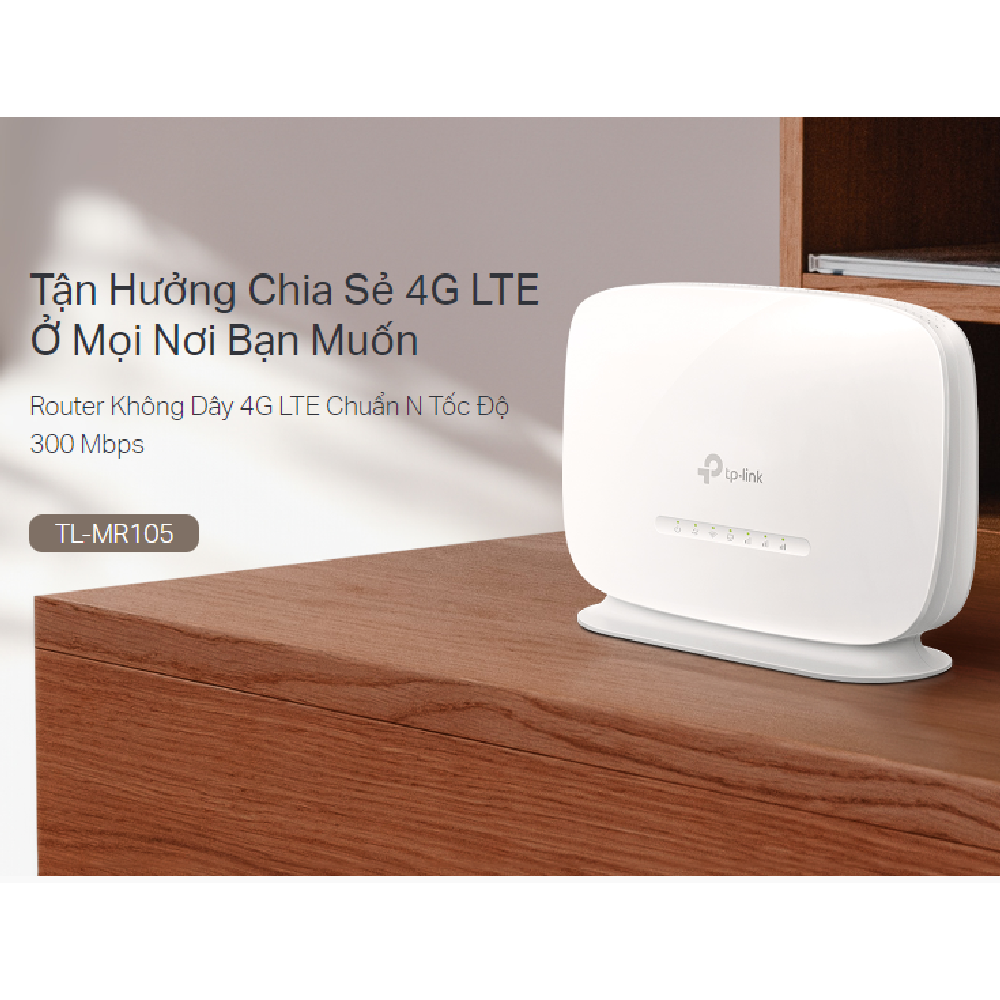

| Sản phẩm bao gồm | 300 Mbps Wireless N 4G LTE TL-MR105 1.5m Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
