| Cảm biến hình ảnh | 1/2.7“ |
| Ống kính | F/NO: 2.1 |
| Tầm nhìn đêm | 850 nm IR LED up to 25 ft |
| Lighting | Built-in Spotlights |
| Interface & Button | 1× RESET Button 1× Doorbell Button 1× Anti-Theft Button |
| Hub Compatibility | Compatible with H200 (Included) |

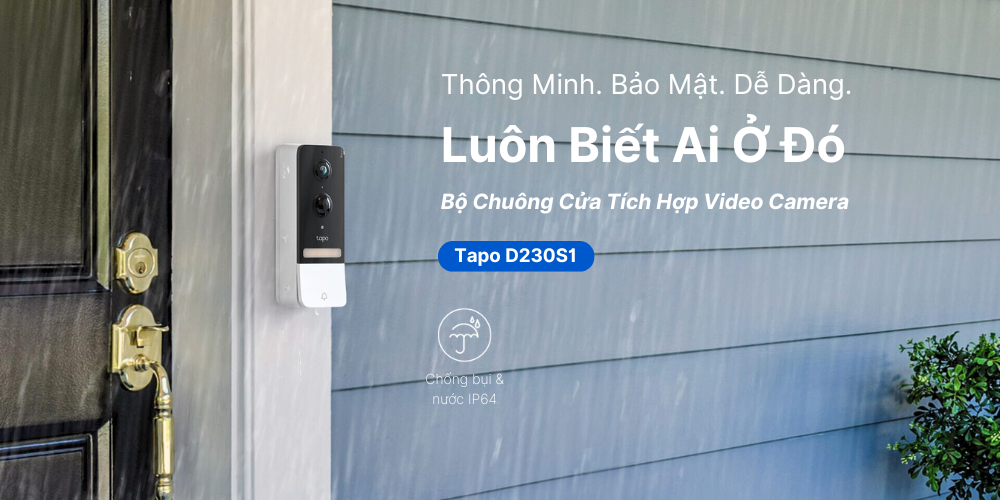

| Chuẩn chống nước | IP64 |

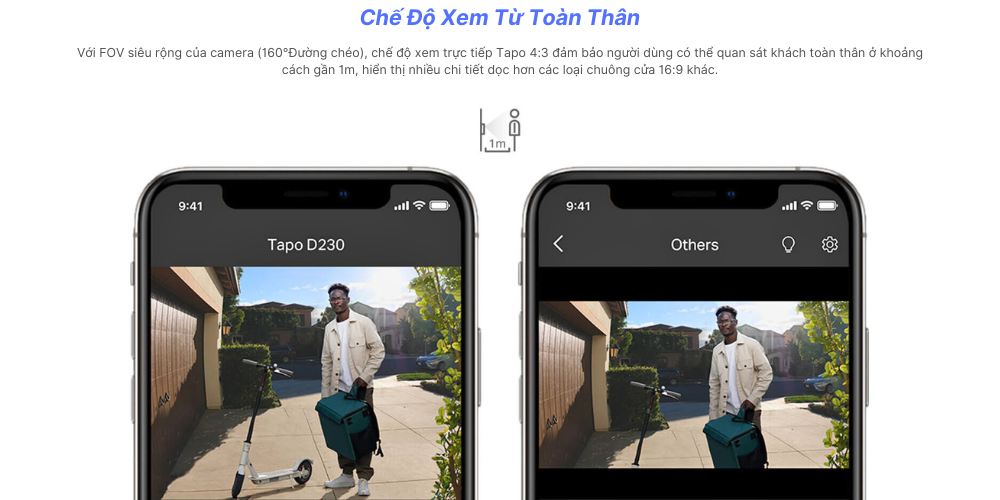

| Góc nhìn | 160° Diagonal |
| Độ phân giải | 2K 5MP (2560 × 1920px) |
| Connection Capacity | Up to 64 Sub-1G switches, sensors, or buttons + 4 cameras or video doorbells |
| Interface & Button | 1× Ethernet Port 1× RESET Button 1× MicroSD Card Slot (Up to 512 GB) 1x SYNC Button |
| Maximum Resolution | 2K 5MP (2560 × 1920px) |
| Frame Rate | 15 fps |
| Digital Zoom | 16x |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNR WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | Doorbell: 96 dB (Anti-theft siren, Level measured at 4-inch/10-cm distance) Hub: 100 dB (Level measured at 4-inch/10-cm distance) |
| Tốc độ khung hình | 15 fps |
| Truyền phát video | 2K 5MP |
| Nén video | H.264 |
| Nén âm thanh | G.711 |
| Sensor | Single PIR Motion Sensor (FOV: 130° horizontal) One Ambient Light Sensor |
| AI Detection | Motion Detection Person Detection Pet Detection Vehicle Detection Package Detection |
| Activity Zones | Yes *Only works with Motion Detection. |
| Output Notification | System Notification System Notification with Snapshot (Tapo Care Services) |
| Đàm thoại | 2-way audio |
| Âm thanh vào & ra | Built-in microphone and speaker |
| Network Connectivity | Connect via Wi-Fi |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi Sub-1G, 868MHz (Used for local connection between doorbell and hub) |
| Giao thức | TCP/IP, ICMP, DNS, HTTPS, TCP, UDP |
| Ethernet Port | 1× 10/100 Mbps RJ45 Port on Hub |
| Bảo Mật Không Dây | WPA/WPA2-PSK |
| Chuẩn và Giao thức | IEEE 802.11b/g/n, 2.4 GHz |
| Bảo mật | 128 bit AES encryption with SSL/TLS |
| Băng tần | 2.4 GHz |
| Security | On-Device Machine Learning 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK |

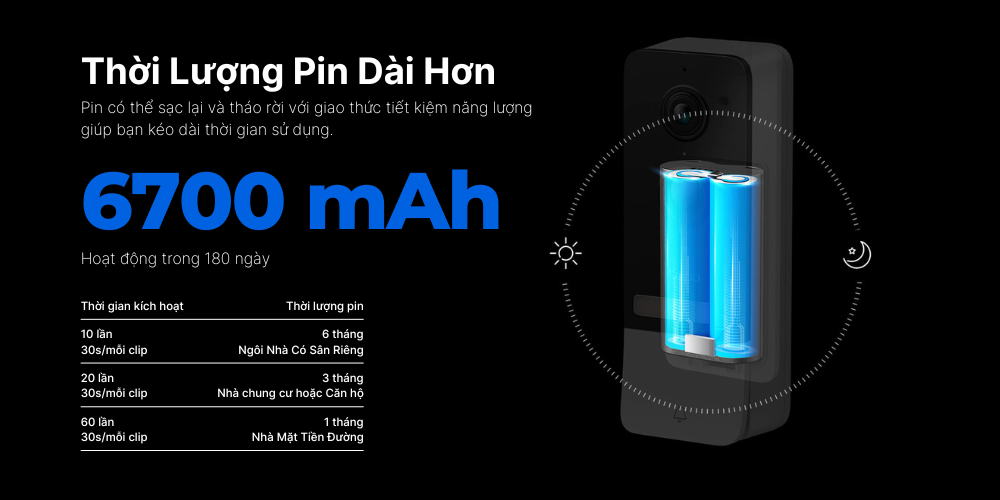

| Power Source | Doorbell: 6700 mAh Removable Rechargeable Lithium-ion Battery Hub: 9V DC Power Adapter |
| Input Voltage | Doorbell Battery Pack Adapter Input: 100-240 V, 50/60 Hz Hub Adapter Input: 100-240 V, 50/60 Hz, 0.3 A |
| Output Voltage | Hub Adapter Output: 9.0 V, 0.85 A Doorbell Battery Pack Adapter Output: 5.0 V, 1.0 A Hub Adapter Output: 9.0 V, 0.85 A |
